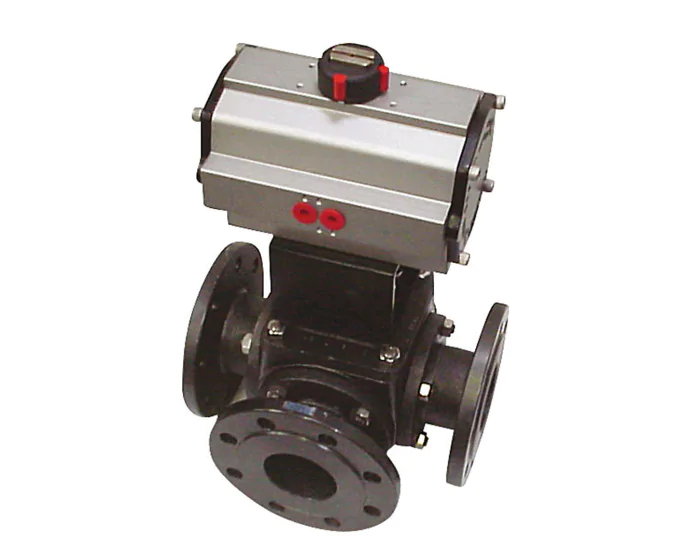

The 783 L-port 3-way carbon steel ball valve has an A216WCB steel body and a CF8 carbon steel ball. It is flanged and actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN25 - 1'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 3 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Surface temperature | TX |
| 3-way type | L-port |
| Pneumatic actuator type | Double acting |
| Warranty period | 1 year |
| CE | Risk category II |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Face to Face (mm) | 185 |
| Bore | Full |
| Packing gland | PTFE |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 304 |
| TS max (°C) | 150 |
| TS min (°C) | -20 |
| ATEX zone | 1.21.2.22 |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN25 - 1'' Double acting L-port | 275674015101 | S1001498 |
€572.83
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN50 - 2'' Double acting L-port | 275677015104 | S1001501 |
€1,193.96
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN50 - 2'' Spring return L-port | 275677016106 | S1001502 |
€1,397.76
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN65 - 2''1/2 Double acting L-port | 275678015105 | S1001503 |
€1,634.10
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN65 - 2''1/2 Spring return L-port | 275678016107 | S1001504 |
€2,086.56
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN80 - 3'' Double acting L-port | 275679015105 | S1001505 |
€1,988.53
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN80 - 3'' Spring return L-port | 275679016107 | S1001506 |
€2,348.70
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN100 - 4'' Double acting L-port | 275680015106 | S1001507 |
€4,239.81
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN100 - 4'' Spring return L-port | 275680016108 | S1001508 |
€4,810.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN125 - 5'' Double acting L-port | 275681015108 | S1001509 |
€6,026.17
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN125 - 5'' Spring return L-port | 275681016110 | S1001510 |
€7,050.10
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN150 - 6'' Double acting L-port | 275682015110 | S1001511 |
€9,575.43
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN150 - 6'' Spring return L-port | 275682016111 | S1001512 |
€10,529.27
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN50 - 2'' Double acting T-port | 275687015104 | S1001516 |
€1,193.96
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN50 - 2'' Spring return T-port | 275687016106 | S1001517 |
€1,397.76
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN65 - 2''1/2 Double acting T-port | 275688015105 | S1001518 |
€1,634.10
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN65 - 2''1/2 Spring return T-port | 275688016107 | S1001519 |
€2,086.56
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN80 - 3'' Double acting T-port | 275689015105 | S1001520 |
€1,988.53
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN80 - 3'' Spring return T-port | 275689016107 | S1001521 |
€2,348.70
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN100 - 4'' Double acting T-port | 275690015106 | S1001522 |
€4,239.81
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN100 - 4'' Spring return T-port | 275690016108 | S1001523 |
€4,810.80
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN125 - 5'' Double acting T-port | 275691015108 | S1001524 |
€6,026.17
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN125 - 5'' Spring return T-port | 275691016110 | S1001525 |
€7,050.10
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN150 - 6'' Double acting T-port | 275692015110 | S1001526 |
€9,575.43
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full DN150 - 6'' Spring return T-port | 275692016111 | S1001527 |
€10,529.27
(excl. btw)
|
add to cart |
